ASP.NET8 using DataTables.net – Part6 – Returning additional parameters in AJAX

• Download source

1 ASP.NET8 using jQuery DataTables.net

I was evaluating the jQuery DataTables.net component [1] for usage in ASP.NET8 projects and created several prototype (proof-of-concept) applications that are presented in these articles.

1.1 Articles in this series

Articles in this series are:

• ASP.NET8 using DataTables.net – Part1 – Foundation
• ASP.NET8 using DataTables.net – Part2 – Action buttons
• ASP.NET8 using DataTables.net – Part3 – State saving
• ASP.NET8 using DataTables.net – Part4 – Multilingual
• ASP.NET8 using DataTables.net – Part5 – Passing additional parameters in AJAX
• ASP.NET8 using DataTables.net – Part6 – Returning additional parameters in AJAX
• ASP.NET8 using DataTables.net – Part7 – Buttons regular
• ASP.NET8 using DataTables.net – Part8 – Select rows
• ASP.NET8 using DataTables.net – Part9 – Advanced Filters

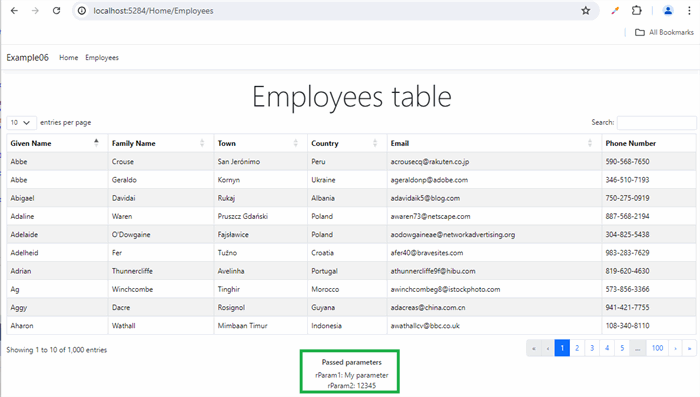

2 Final result

The goal of this article is to create a proof-of-concept application that demos DataTables.net component returning additional parameters in AJAX. Let us present the result of this article.

The point is, the component DataTables.net lets you pass some additional parameters to return in AJAX call to the client end. I am showing that data on the form. That data is passed from the back-end to the front-end in an AJAX call.

3 Client-side DataTables.net component

Here I will just show what the ASP.NET view using DataTables component looks like.

<!-- Employees.cshtml -->
<partial name="_LoadingDatatablesJsAndCss" />

@{
    <div class="text-center">
        <h3 class="display-4">Employees table</h3>
    </div>

    <!-- Here is our table HTML element defined. JavaScript library Datatables
    will do all the magic to turn it into interactive component -->
    <table id="EmployeesTable01" class="table table-striped table-bordered ">
    </table>

    <div class="text-center">
        <h6>Passed parameters</h6>
        rParam1: <span id="rParam1"></span> <br />
        rParam2: <span id="rParam2"></span>

    </div>
}

<script>
    // Datatables script initialization=========================================
    // we used defer attribute on jQuery so it might not be available at this point
    // so we go for vanilla JS event

    document.addEventListener("DOMContentLoaded", InitializeDatatable);

    function InitializeDatatable() {
        $("#EmployeesTable01").dataTable({
            //processing-Feature control the processing indicator.
            processing: true,
            //paging-Enable or disable table pagination.
            paging: true,
            //info-Feature control table information display field
            info: true,
            //ordering-Feature control ordering (sorting) abilities in DataTables.
            ordering: true,
            //searching-Feature control search (filtering) abilities
            searching: true,
            //search.return-Enable / disable DataTables' search on return.
            search: {
                return: true
            },
            //autoWidth-Feature control DataTables' smart column width handling.
            autoWidth: true,
            //lengthMenu-Change the options in the page length select list.
            lengthMenu: [10, 15, 25, 50, 100],
            //pageLength-Change the initial page length (number of rows per page)
            pageLength: 10,

            //order-Initial order (sort) to apply to the table.
            order: [[1, 'asc']],

            //serverSide-Feature control DataTables' server-side processing mode.
            serverSide: true,

            //Load data for the table's content from an Ajax source.
            ajax: {
                "url": "@Url.Action("EmployeesDT", "Home")",
                "type": "POST",
                "datatype": "json",
                "dataSrc": extractReturnParameters
            },

            //Set column specific initialization properties
            columns: [
                //name-Set a descriptive name for a column
                //data-Set the data source for the column from the rows data object / array
                //title-Set the column title
                //orderable-Enable or disable ordering on this column
                //searchable-Enable or disable search on the data in this column
                //type-Set the column type - used for filtering and sorting string processing
                //visible-Enable or disable the display of this column.
                //width-Column width assignment.
                //render-Render (process) the data for use in the table.
                //className-Class to assign to each cell in the column.

                {   //0
                    name: 'id',
                    data: 'id',
                    title: "Employee Id",
                    orderable: true,
                    searchable: false,
                    type: 'num',
                    visible: false
                },
                {
                    //1
                    name: 'givenName',
                    data: "givenName",
                    title: "Given Name",
                    orderable: true,
                    searchable: true,
                    type: 'string',
                    visible: true
                },
                {
                    //2
                    name: 'familyName',
                    data: "familyName",
                    title: "Family Name",
                    orderable: true,
                    searchable: true,
                    type: 'string',
                    visible: true
                },
                {
                    //3
                    name: 'town',
                    data: "town",
                    title: "Town",
                    orderable: true,
                    searchable: true,
                    type: 'string',
                    visible: true
                },
                {
                    //4
                    name: 'country',
                    data: "country",
                    title: "Country",
                    orderable: true,
                    searchable: true,
                    type: 'string',
                    visible: true
                },
                {
                    //5
                    name: 'email',
                    data: "email",
                    title: "Email",
                    orderable: true,
                    searchable: true,
                    type: 'string',
                    visible: true
                },
                {
                    //6
                    name: 'phoneNo',
                    data: "phoneNo",
                    title: "Phone Number",
                    orderable: false,
                    searchable: true,
                    type: 'string',
                    visible: true
                }
            ]
        });

        function extractReturnParameters(json) {
            let rParam1 = json.rParam1;
            let rParam2 = json.rParam2;
            //async work
            setTimeout(() => doWorkWithParamters(rParam1, rParam2), 0);
            return json.data;
        }

        function doWorkWithParamters(rParam1, rParam2) {
            let span1 = document.getElementById('rParam1');
            span1.innerHTML = rParam1;
            let span2 = document.getElementById('rParam2');
            span2.innerHTML = rParam2;
        }
    }
</script>

Note that in ajax property we used property dataSrc to pass a reference to JavaScript function extractReturnParameters that is going to extract returned parameters.

More about these properties can be found in the manual at [1]. The application here is just a proof of concept for ASP.NET environment.

4 Sample AJAX call

To better understand what is going on, I used Chrome DevTools to capture data returned back in a sample AJAX call.

Here is the AJAX call response:

{
    "draw": 1,
    "recordsTotal": 1000,
    "recordsFiltered": 1000,
    "data": [
        {
            "id": 459,
            "givenName": "Abbe",
            "familyName": "Crouse",
            "town": "San Jerónimo",
            "country": "Peru",
            "email": "acrousecq@rakuten.co.jp",
            "phoneNo": "590-568-7650"
        },
        {
            "id": 854,
            "givenName": "Abbe",
            "familyName": "Geraldo",
            "town": "Kornyn",
            "country": "Ukraine",
            "email": "ageraldonp@adobe.com",
            "phoneNo": "346-510-7193"
        },
        {
            "id": 726,
            "givenName": "Abigael",
            "familyName": "Davidai",
            "town": "Rukaj",
            "country": "Albania",
            "email": "adavidaik5@blog.com",
            "phoneNo": "750-275-0919"
        },
        {
            "id": 256,
            "givenName": "Adaline",
            "familyName": "Waren",
            "town": "Pruszcz Gdański",
            "country": "Poland",
            "email": "awaren73@netscape.com",
            "phoneNo": "887-568-2194"
        },
        {
            "id": 375,
            "givenName": "Adelaide",
            "familyName": "O'Dowgaine",
            "town": "Fajsławice",
            "country": "Poland",
            "email": "aodowgaineae@networkadvertising.org",
            "phoneNo": "304-825-5438"
        },
        {
            "id": 145,
            "givenName": "Adelheid",
            "familyName": "Fer",
            "town": "Tužno",
            "country": "Croatia",
            "email": "afer40@bravesites.com",
            "phoneNo": "983-283-7629"
        },
        {
            "id": 340,
            "givenName": "Adrian",
            "familyName": "Thunnercliffe",
            "town": "Avelinha",
            "country": "Portugal",
            "email": "athunnercliffe9f@hibu.com",
            "phoneNo": "819-620-4630"
        },
        {
            "id": 585,
            "givenName": "Ag",
            "familyName": "Winchcombe",
            "town": "Tinghir",
            "country": "Morocco",
            "email": "awinchcombeg8@istockphoto.com",
            "phoneNo": "573-856-3366"
        },
        {
            "id": 389,
            "givenName": "Aggy",
            "familyName": "Dacre",
            "town": "Rosignol",
            "country": "Guyana",
            "email": "adacreas@china.com.cn",
            "phoneNo": "941-421-7755"
        },
        {
            "id": 464,
            "givenName": "Aharon",
            "familyName": "Wathall",
            "town": "Mimbaan Timur",
            "country": "Indonesia",
            "email": "awathallcv@bbc.co.uk",
            "phoneNo": "108-340-8110"
        }
    ],
    "rParam1": "My parameter",
    "rParam2": 12345
}

I of course extracted only relevant data parts. Every better Web programmer should be able to understand what is going on from the above data.

5 Bug in DataTables.AspNet.Core library

Unfortunately, there is a bug in C#/.NET library DataTables.AspNet.Core related to returning parameters in an AJAX call. There is a workaround for that bug, and I am using it in this example. Here is Helper class that workaround that bug.

using DataTables.AspNet.AspNetCore;
using Newtonsoft.Json;
using System.Collections;

//DataTablesResponseHelper.cs
namespace Example06
{
    /*
     * This code has been taken from https://github.com/ALMMa/datatables.aspnet/issues/72
     * It resolves the bug in library DataTables.AspNet.AspNetCore
     * when returning parameters from server to client
     * proper usage is as follows
     *
     *  // Create some response additional parameters.
     *   var returnParameters = new Dictionary<string, object>()
     *               {
     *                   { "rParam1", "My parameter" },
     *                   { "rParam2", 12345 }
     *               };
     *
     *  var response = DataTablesResponse.Create(
     *       request, totalRecordsCount, filteredRecordsCount, dataPage, returnParameters);
     *  var response2 = new DataTablesResponseHelper(response);
     *
     *  return new DataTablesJsonResult(response2, true);
     */


    public class DataTablesResponseHelper : DataTables.AspNet.AspNetCore.DataTablesResponse
    {
        protected DataTablesResponseHelper(int draw, string errorMessage) :
            base(draw, errorMessage)
        {
        }

        protected DataTablesResponseHelper(int draw, string errorMessage,
            IDictionary<string, object> additionalParameters) :
            base(draw, errorMessage, additionalParameters)
        {
        }

        protected DataTablesResponseHelper(int draw, int totalRecords, int totalRecordsFiltered, object data) :
            base(draw, totalRecords, totalRecordsFiltered, data)
        {
        }

        protected DataTablesResponseHelper(int draw, int totalRecords, int totalRecordsFiltered,
            object data, IDictionary<string, object> additionalParameters) :
            base(draw, totalRecords, totalRecordsFiltered, data, additionalParameters)
        {
        }

        public DataTablesResponseHelper(DataTablesResponse response) :
            this(response.Draw, response.TotalRecords, response.TotalRecordsFiltered,
                response.Data, response.AdditionalParameters)
        {
        }

        private bool IsSuccessResponse()
        {
            return this.Data != null && string.IsNullOrWhiteSpace(this.Error);
        }

        public override string ToString()
        {
            using (StringWriter stringWriter = new StringWriter())
            {
                using (JsonTextWriter jsonTextWriter = new JsonTextWriter((TextWriter)stringWriter))
                {
                    if (this.IsSuccessResponse())
                    {
                        jsonTextWriter.WriteStartObject();
                        jsonTextWriter.WritePropertyName(Configuration.Options.ResponseNameConvention.Draw, true);
                        jsonTextWriter.WriteValue(this.Draw);
                        jsonTextWriter.WritePropertyName(Configuration.Options.ResponseNameConvention.TotalRecords, true);
                        jsonTextWriter.WriteValue(this.TotalRecords);
                        jsonTextWriter.WritePropertyName(Configuration.Options.ResponseNameConvention.TotalRecordsFiltered, true);
                        jsonTextWriter.WriteValue(this.TotalRecordsFiltered);
                        jsonTextWriter.WritePropertyName(Configuration.Options.ResponseNameConvention.Data, true);
                        jsonTextWriter.WriteRawValue(this.SerializeData(this.Data));
                        if (this.AdditionalParameters != null)
                        {
                            foreach (KeyValuePair<string, object> additionalParameter in (IEnumerable<KeyValuePair<string, object>>)this.AdditionalParameters)
                            {
                                jsonTextWriter.WritePropertyName(additionalParameter.Key, true);
                                if (additionalParameter.Value is IEnumerable)
                                {
                                    jsonTextWriter.WriteRawValue(SerializeData(additionalParameter.Value));
                                }
                                else
                                {
                                    jsonTextWriter.WriteValue(additionalParameter.Value);
                                }
                            }
                        }
                        jsonTextWriter.WriteEndObject();
                    }
                    else
                    {
                        jsonTextWriter.WriteStartObject();
                        jsonTextWriter.WritePropertyName(Configuration.Options.ResponseNameConvention.Draw, true);
                        jsonTextWriter.WriteValue(this.Draw);
                        jsonTextWriter.WritePropertyName(Configuration.Options.ResponseNameConvention.Error, true);
                        jsonTextWriter.WriteValue(this.Error);
                        if (this.AdditionalParameters != null)
                        {
                            foreach (KeyValuePair<string, object> additionalParameter in
                                (IEnumerable<KeyValuePair<string, object>>) this.AdditionalParameters)
                            {
                                jsonTextWriter.WritePropertyName(additionalParameter.Key, true);
                                if (additionalParameter.Value is IEnumerable)
                                {
                                    jsonTextWriter.WriteRawValue(SerializeData(additionalParameter.Value));
                                }
                                else
                                {
                                    jsonTextWriter.WriteValue(additionalParameter.Value);
                                }
                            }
                        }
                        jsonTextWriter.WriteEndObject();
                    }
                    jsonTextWriter.Flush();
                    return stringWriter.ToString();
                }
            }
        }
    }
}

6 ASP.NET back-end processing

So, we are now at C#/.NET part, writing our ASP.NET code. Here is the solution I came up with. I will not pretend it is easy, it assumes a good understanding of libraries DataTables.AspNet.Core and System.Linq.Dynamic.Core.

Here is the code:

//HomeController.cs

//this is target of AJAX call and provides data for
//the table, based on selected input parameters
public IActionResult EmployeesDT(DataTables.AspNet.Core.IDataTablesRequest request)
{
    // There is dependency in this method on names of fields
    // and implied mapping. I see it almost impossible to avoid.
    // At least, in this method, we avoided dependency on the order
    // of table fields, in case order needs to be changed
    //Here are our mapped table columns:
    //Column0 id -> Employee.Id
    //Column1 givenName -> Employee.FirstName
    //Column2 familyName -> Employee.LastName
    //Column3 town -> Employee.City
    //Column4 country -> Employee.Country
    //Column5 email -> Employee.Email
    //Column6 phoneNo -> Employee.Phone

    try
    {
        IQueryable<Employee> employees = MockDatabase.MockDatabase.Instance.EmployeesTable.AsQueryable();

        int totalRecordsCount = employees.Count();

        var iQueryableOfAnonymous = employees.Select(p => new
        {
            id = p.Id,
            givenName = p.FirstName,
            familyName = p.LastName,
            town = p.City,
            country = p.Country,
            email = p.Email,
            phoneNo = p.Phone,
        });

        iQueryableOfAnonymous = FilterRowsPerRequestParameters(iQueryableOfAnonymous, request);

        int filteredRecordsCount = iQueryableOfAnonymous.Count();

        iQueryableOfAnonymous = SortRowsPerRequestParamters(iQueryableOfAnonymous, request);

        iQueryableOfAnonymous = iQueryableOfAnonymous.Skip(request.Start).Take(request.Length);

        var dataPage = iQueryableOfAnonymous.ToList();

        // Create some response additional parameters.
        var returnParameters = new Dictionary<string, object>()
            {
                { "rParam1", "My parameter" },
                { "rParam2", 12345 }
            };

        var response = DataTablesResponse.Create(request, totalRecordsCount, filteredRecordsCount, dataPage, returnParameters);
        var response2 = new DataTablesResponseHelper(response);

        return new DataTablesJsonResult(response2, true);
    }
    catch (Exception ex)
    {
        Console.WriteLine(ex.ToString());
        var response = DataTablesResponse.Create(request, "Error processing AJAX call on server side");
        return new DataTablesJsonResult(response, false);
    }
}

//Program.cs
namespace Example06
{
    public class Program
    {
        public static void Main(string[] args)
        {
            var builder = WebApplication.CreateBuilder(args);

            // Add services to the container.
            builder.Services.AddControllersWithViews();

            // DataTables.AspNet registration
            DataTablesAspNetRegistration(builder);

            var app = builder.Build();

            // Configure the HTTP request pipeline.
            if (!app.Environment.IsDevelopment())
            {
                app.UseExceptionHandler("/Home/Error");
            }
            app.UseStaticFiles();

            app.UseRouting();

            app.UseAuthorization();

            app.MapControllerRoute(
                name: "default",
                pattern: "{controller=Home}/{action=Index}/{id?}");

            app.Run();
        }

        //DataTables.AspNet registration
        public static void DataTablesAspNetRegistration(WebApplicationBuilder? builder)
        {
            if (builder == null) { throw new Exception("builder == null"); };

            var options = new DataTables.AspNet.AspNetCore.Options()
               .EnableRequestAdditionalParameters()
               .EnableResponseAdditionalParameters();

            // DataTables.AspNet registration
            builder.Services.RegisterDataTables(options);
        }
    }
}

7 Conclusion

The full example code project can be downloaded.

8 References

[1] https://datatables.net/
